JF700

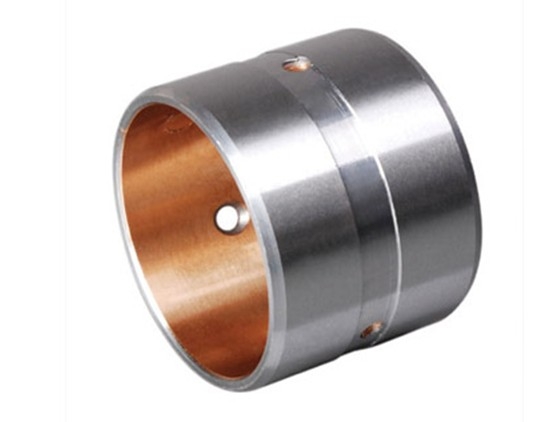

JF700 bi-metal bushing is backing on low carbon steel, sintered with CuPb30 bronze
powder. It has good performance in shaft seizing resistance and cover up alien substance due to the high lead content.
When soft alloy is plated on the bushing surface, it can be applied under high speed and middle load working situation, just like engine main bearing, connectrod bushing, rocket arm bushing and oil pump side plate.
Liner material: CuPb30
Load capacity: 25N/mm2
Temperature Max: 170℃
Liner hardness: HB30~45
